Quantification of ClickTag Counts with kallisto-bustools (Starvation Data)
Download Data #Install kallisto and bustools
!wget --quiet https://github.com/pachterlab/kallisto/releases/download/v0.46.2/kallisto_linux-v0.46.2.tar.gz
!tar -xf kallisto_linux-v0.46.2.tar.gz
!cp kallisto/kallisto /usr/local/bin/
!wget --quiet https://github.com/BUStools/bustools/releases/download/v0.40.0/bustools_linux-v0.40.0.tar.gz
!tar -xf bustools_linux-v0.40.0.tar.gz
!cp bustools/bustools /usr/local/bin/
import requests
from tqdm import tnrange, tqdm_notebook
def download_file(doi,ext):
url = 'https://api.datacite.org/dois/'+doi+'/media'
r = requests.get(url).json()
netcdf_url = r['data'][0]['attributes']['url']
r = requests.get(netcdf_url,stream=True)
#Set file name
fname = doi.split('/')[-1]+ext
#Download file with progress bar
if r.status_code == 403:
print("File Unavailable")
if 'content-length' not in r.headers:
print("Did not get file")
else:
with open(fname, 'wb') as f:
total_length = int(r.headers.get('content-length'))
pbar = tnrange(int(total_length/1024), unit="B")
for chunk in r.iter_content(chunk_size=1024):
if chunk:
pbar.update()
f.write(chunk)
return fname
# Get ClickTag Barcodes/Sequences
download_file('10.22002/D1.1831','.gz')
#All ClickTag MiSeq fastqs
download_file('10.22002/D1.1856','.tar.gz')
# jelly3tags1counts.csv
download_file('10.22002/D1.1799','.gz')
# jelly3tags2counts.csv
download_file('10.22002/D1.1800','.gz')
# cellRanger fs/h5ad
download_file('10.22002/D1.1798','.gz')
/ usr / local / lib / python3 . 6 / dist - packages / ipykernel_launcher . py : 18 : TqdmDeprecationWarning : Please use ` tqdm . notebook . trange ` instead of ` tqdm . tnrange `
HBox ( children = ( FloatProgress ( value = 1 . 0 , bar_style = 'info' , max = 1 . 0 ), HTML ( value = '' )))
HBox ( children = ( FloatProgress ( value = 0 . 0 , max = 1929774 . 0 ), HTML ( value = '' )))
HBox ( children = ( FloatProgress ( value = 0 . 0 , max = 2984 . 0 ), HTML ( value = '' )))
HBox ( children = ( FloatProgress ( value = 0 . 0 , max = 2737 . 0 ), HTML ( value = '' )))
HBox ( children = ( FloatProgress ( value = 0 . 0 , max = 45376 . 0 ), HTML ( value = '' )))
'D1.1798.gz'
!gunzip D1.1831.gz D1.1799.gz D1.1800.gz D1.1798.gz
!pip install --quiet anndata
!pip install --quiet scanpy
!pip install --quiet louvain
!pip3 install --quiet biopython
[K |████████████████████████████████| 122kB 4.9MB/s
[K |████████████████████████████████| 10.2MB 4.5MB/s
[K |████████████████████████████████| 71kB 6.9MB/s
[K |████████████████████████████████| 51kB 4.9MB/s
[?25h Building wheel for sinfo (setup.py) ... [?25l[?25hdone
[K |████████████████████████████████| 2.2MB 6.9MB/s
[K |████████████████████████████████| 3.2MB 45.3MB/s
[K |████████████████████████████████| 2.3MB 5.0MB/s
[?25h
Import Packages import pandas as pd
import copy
from sklearn.preprocessing import LabelEncoder
from scipy import sparse
import scipy
import numpy as np
import anndata
import matplotlib.pyplot as plt
import seaborn as sns
import scanpy as sc
from collections import OrderedDict
from Bio import SeqIO
import os
from scipy import io
import scipy.io as sio
import time
%matplotlib inline
%config InlineBackend.figure_format = 'retina'
Create map of all ClickTag barcodes and sequences Hamming distance 1 away from these barcodes
## Set parameters - below are parameters for 10x 3' v2 chemistry
## The cell hashing method uses tags of length 12, we included the variable B (T,C,G) in the end to make it lenght 13
cell_barcode_length = 16
UMI_length = 12
sample_tag_length=11
"""
This function returns all sample tags and and their single base mismatches (hamming distance 1).
ClickTag sequences are provided as a fasta file, and the script indexes the barcode region of the fasta
"""
"parse the tags file and output the set of tag sequences"
def parse_tags(filename):
odict = OrderedDict()
print('Read the following tags:')
for record in SeqIO.parse(filename, "fasta"):
counter=0
print(record.seq)
odict[record.name] = str(record.seq)[26:26+sample_tag_length]
for pos in range(sample_tag_length):
letter =str(record.seq)[26+pos]
barcode=list(str(record.seq)[26:26+sample_tag_length])
if letter=='A':
barcode[pos]='T'
odict[record.name+'-'+str(pos)+'-1'] = "".join(barcode)
barcode[pos]='G'
odict[record.name+'-'+str(pos)+'-2'] = "".join(barcode)
barcode[pos]='C'
odict[record.name+'-'+str(pos)+'-3'] = "".join(barcode)
elif letter=='G':
barcode[pos]='T'
odict[record.name+'-'+str(pos)+'-1'] = "".join(barcode)
barcode[pos]='A'
odict[record.name+'-'+str(pos)+'-2'] = "".join(barcode)
barcode[pos]='C'
odict[record.name+'-'+str(pos)+'-3'] = "".join(barcode)
elif letter=='C':
barcode[pos]='T'
odict[record.name+'-'+str(pos)+'-1'] = "".join(barcode)
barcode[pos]='G'
odict[record.name+'-'+str(pos)+'-2'] = "".join(barcode)
barcode[pos]='A'
odict[record.name+'-'+str(pos)+'-3'] = "".join(barcode)
else:
barcode[pos]='A'
odict[record.name+'-'+str(pos)+'-1'] = "".join(barcode)
barcode[pos]='G'
odict[record.name+'-'+str(pos)+'-2'] = "".join(barcode)
barcode[pos]='C'
odict[record.name+'-'+str(pos)+'-3'] = "".join(barcode)
return odict
# Make kallisto index from ClickTag sequences
!mv D1.1831 70BPbarcodes.fa
tags_file_path = ("70BPbarcodes.fa") #70BPbarcodes.fa
tag_map=parse_tags(tags_file_path)
work_folder = ''
data_folder = ''
write_folder = ''
#Write the list of barcodes as a fasta, then make a kallisto index
!mkdir barcode_corrected_tags
tagmap_file_path = "barcode_corrected_tags/70BPbarcodes_tagmap.fa"
tagmap_file = open(tagmap_file_path, "w+")
for i in list(tag_map.keys()):
tagmap_file.write(">" + i + "\n" +tag_map[i] + "\n")
tagmap_file.close()
!kallisto index -i {tagmap_file_path}.idx -k 11 {tagmap_file_path}
!kallisto inspect {tagmap_file_path}.idx
Read the following tags : CTGGGTCGTCGGCAGCGTCAGATGTGTAAGCAGTTACAGAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA CTGGGTCGTCGGCAGCGTCAGATGTGTACTTGTACCCAGAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA CTGGGTCGTCGGCAGCGTCAGATGTGTAGAACCCGGCAGAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA CTGGGTCGTCGGCAGCGTCAGATGTGTATCGTAGATCAGAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA CTGGGTCGTCGGCAGCGTCAGATGTGTAACGCGGAACAGAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA CTGGGTCGTCGGCAGCGTCAGATGTGTACGCTATCCCAGAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA CTGGGTCGTCGGCAGCGTCAGATGTGTAGTTGCATGCAGAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA CTGGGTCGTCGGCAGCGTCAGATGTGTATAAATCGTCAGAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA CTGGGTCGTCGGCAGCGTCAGATGTGTAATCGCCATCAGAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA CTGGGTCGTCGGCAGCGTCAGATGTGTACATAAAGGCAGAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA CTGGGTCGTCGGCAGCGTCAGATGTGTATCACGGTACAGAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA CTGGGTCGTCGGCAGCGTCAGATGTGTACACTCAACCAGAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA CTGGGTCGTCGGCAGCGTCAGATGTGTAGCTGTGTACAGAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA CTGGGTCGTCGGCAGCGTCAGATGTGTATTGCGTCGCAGAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA CTGGGTCGTCGGCAGCGTCAGATGTGTAATATGAGACAGAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA CTGGGTCGTCGGCAGCGTCAGATGTGTACACCTCAGCAGAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA CTGGGTCGTCGGCAGCGTCAGATGTGTAGCTACTTCCAGAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA CTGGGTCGTCGGCAGCGTCAGATGTGTATGGGAGCTCAGAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA CTGGGTCGTCGGCAGCGTCAGATGTGTAATCCGGCACAGAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA CTGGGTCGTCGGCAGCGTCAGATGTGTACCGTTATGCAGAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA [ build ] loading fasta file barcode_corrected_tags / 70 BPbarcodes_tagmap . fa [ build ] k - mer length : 11 [ build ] counting k - mers ... done . [ build ] building target de Bruijn graph ... done
[ build ] creating equivalence classes ... done [ build ] target de Bruijn graph has 680 contigs and contains 680 k - mers [ index ] k - mer length : 11 [ index ] number of targets : 680 [ index ] number of k - mers : 680 [ index ] number of equivalence classes : 680 # [ inspect ] Index version number = 10 # [ inspect ] k = 11 # [ inspect ] number of targets = 680 # [ inspect ] number of equivalence classes = 680 # [ inspect ] number of contigs = 680 # [ inspect ] Number of k - mers in index = 680 #EC . size Num . targets 1 680 #EC . size Num . kmers 1 680 Quantify ClickTags with kallisto bustools and barcode whitelist
#Run kallisto bus on ClickTag fastqs
!mkdir jelly3fedstarved_1_tags_HiSeq
write_folder = 'jelly3fedstarved_1_tags_HiSeq'
R1_1='Jelly3tags1_S1_L001_R1_001.fastq.gz'
R2_1='Jelly3tags1_S1_L001_R2_001.fastq.gz'
!kallisto bus -i {tagmap_file_path}.idx -o {write_folder} -x 10xv2 -t 20 {R1_1} {R2_1}
#sort bus file
!bustools sort -o {os.path.join(write_folder,'output_sorted.bus')} {os.path.join(write_folder,'output.bus')}
# convert the sorted busfile to txt
!bustools text -o {os.path.join(write_folder,'output_sorted.txt')} {os.path.join(write_folder,'output_sorted.bus')}
!mkdir jelly3fedstarved_2_tags_HiSeq
write_folder = 'jelly3fedstarved_2_tags_HiSeq'
R1_2='Jelly3tags2_S2_L001_R1_001.fastq.gz'
R2_2='Jelly3tags2_S2_L001_R2_001.fastq.gz'
!kallisto bus -i {tagmap_file_path}.idx -o {write_folder} -x 10xv2 -t 20 {R1_2} {R2_2}
#sort bus file
!bustools sort -o {os.path.join(write_folder,'output_sorted.bus')} {os.path.join(write_folder,'output.bus')}
# convert the sorted busfile to txt
!bustools text -o {os.path.join(write_folder,'output_sorted.txt')} {os.path.join(write_folder,'output_sorted.bus')}
Warning : you asked for 20 , but only 2 cores on the machine [ index ] k - mer length : 11 [ index ] number of targets : 680 [ index ] number of k - mers : 680 [ index ] number of equivalence classes : 680 [ quant ] will process sample 1 : Jelly3tags1_S1_L001_R1_001 . fastq . gz Jelly3tags1_S1_L001_R2_001 . fastq . gz [ quant ] finding pseudoalignments for the reads ... done [ quant ] processed 11 , 225 , 060 reads , 10 , 004 , 853 reads pseudoaligned Read in 10004853 BUS records Read in 9946557 BUS records Warning : you asked for 20 , but only 2 cores on the machine [ index ] k - mer length : 11 [ index ] number of targets : 680 [ index ] number of k - mers : 680 [ index ] number of equivalence classes : 680 [ quant ] will process sample 1 : Jelly3tags2_S2_L001_R1_001 . fastq . gz Jelly3tags2_S2_L001_R2_001 . fastq . gz [ quant ] finding pseudoalignments for the reads ... done [ quant ] processed 10 , 090 , 654 reads , 8 , 879 , 356 reads pseudoaligned Read in 8879356 BUS records Read in 8826794 BUS records write_folder = ''
bus_data_jelly1 = pd.read_csv(os.path.join(write_folder,'jelly3fedstarved_1_tags_HiSeq/output_sorted.txt'), delimiter='\t', header=None, names = ['barcode', 'umi', 'tag_eqclass', 'multiplicity'])
bus_data_jelly1.head()
bus_data_jelly1
bus_data_jelly2 = pd.read_csv(os.path.join(write_folder,'jelly3fedstarved_2_tags_HiSeq/output_sorted.txt'), delimiter='\t', header=None, names = ['barcode', 'umi', 'tag_eqclass', 'multiplicity'])
bus_data_jelly2.head()
tag_map_df = pd.DataFrame.from_dict(tag_map, orient = 'index').reset_index()
tag_map_df.columns=['tagname','tagseq']
tag_map_df['ClickTag'] = tag_map_df['tagname'].str.split('-').str.get(0)
tag_map_df.head()
bus_data_jelly1['tag']= bus_data_jelly1['tag_eqclass'].map(tag_map_df['ClickTag'])
bus_data_jelly1.head()
bus_data_jelly2['tag']= bus_data_jelly2['tag_eqclass'].map(tag_map_df['ClickTag'])
bus_data_jelly2.head()
print('Counting UMIs')
counted_data_jelly1 = bus_data_jelly1.groupby(['barcode', 'tag'])['umi'].count().reset_index()
counted_data_jelly1.rename(columns={'umi':'umi_counts'}, inplace = True)
counted_data_jelly1.head()
print('Counting UMIs')
counted_data_jelly2 = bus_data_jelly2.groupby(['barcode', 'tag'])['umi'].count().reset_index()
counted_data_jelly2.rename(columns={'umi':'umi_counts'}, inplace = True)
counted_data_jelly2.head()
Counting UMIs
Counting UMIs
barcode
tag
umi_counts
0
AAAAAAAAAAAAAAAA
BC_23
1
1
AAAAAAAAAAAAAAAA
BC_32
1
2
AAAAAAAAAAAAAAAA
BC_34
1
3
AAAAAAAAAAAAAAAA
BC_40
1
4
AAAAAAAAAAAAAAAC
BC_34
1
data_dict={'counted_data_jelly1':counted_data_jelly1, 'counted_data_jelly2':counted_data_jelly2}
counted_data_jelly1['barcode']=[x+'-1' for x in counted_data_jelly1['barcode'].values]
counted_data_jelly2['barcode']=[x+'-2' for x in counted_data_jelly2['barcode'].values]
for counted_data in data_dict:
le_barcode = LabelEncoder()
barcode_idx =le_barcode.fit_transform(data_dict[counted_data]['barcode'].values)
print('Barcode index shape:', barcode_idx.shape)
le_umi = LabelEncoder()
umi_idx = le_umi.fit_transform(data_dict[counted_data]['umi_counts'].values)
print('UMI index shape:', umi_idx.shape)
le_tag = LabelEncoder()
tag_idx = le_tag.fit_transform(data_dict[counted_data]['tag'].values)
print('Tag index shape:', tag_idx.shape)
# convert data to csr matrix
csr_matrix_data = scipy.sparse.csr_matrix((data_dict[counted_data]['umi_counts'].values,(barcode_idx,tag_idx)))
scipy.io.mmwrite(os.path.join(write_folder,'counted_tag_data/' + counted_data + '.mtx'),csr_matrix_data)
print('Saved sparse csr matrix')
pd.DataFrame(le_tag.classes_).to_csv(os.path.join(write_folder,'counted_tag_data/' + counted_data + '_ClickTag_tag_labels.csv'), index = False, header = False)
pd.DataFrame(le_barcode.classes_).to_csv(os.path.join(write_folder,'counted_tag_data/' + counted_data + '_ClickTag_barcode_labels.csv'), index = False, header = False)
print('Saved cell barcode and hashtag labels')
print('Number of unique cell barcodes seen:', len(le_barcode.classes_))
Barcode index shape: (2019238,)
UMI index shape: (2019238,)
Tag index shape: (2019238,)
Saved sparse csr matrix
Saved cell barcode and hashtag labels
Number of unique cell barcodes seen: 463514
Barcode index shape: (1836152,)
UMI index shape: (1836152,)
Tag index shape: (1836152,)
Saved sparse csr matrix
Saved cell barcode and hashtag labels
Number of unique cell barcodes seen: 425169
# Clicktag for both 10x lanes concatenated
ClickTagCountsmat=scipy.io.mmread(os.path.join(write_folder,'counted_tag_data/counted_data_jelly1.mtx'))
ClickTagCounts=pd.DataFrame(ClickTagCountsmat.toarray(),
index=list(pd.read_csv(os.path.join(write_folder,'counted_tag_data/counted_data_jelly1_ClickTag_barcode_labels.csv'), header=None).loc[:,0]),
columns=list(pd.read_csv(os.path.join(write_folder,'counted_tag_data/' + counted_data + '_ClickTag_tag_labels.csv'), header=None).loc[:,0]))
ClickTagCountsmat=scipy.io.mmread(os.path.join(write_folder,'counted_tag_data/counted_data_jelly2.mtx'))
ClickTagCounts=ClickTagCounts.append(pd.DataFrame(ClickTagCountsmat.toarray(),
index=list(pd.read_csv(os.path.join(write_folder,'counted_tag_data/counted_data_jelly2_ClickTag_barcode_labels.csv'), header=None).loc[:,0]),
columns=list(pd.read_csv(os.path.join(write_folder,'counted_tag_data/' + counted_data + '_ClickTag_tag_labels.csv'), header=None).loc[:,0])))
ClickTagCounts
BC_21
BC_22
BC_23
BC_24
BC_25
BC_26
BC_27
BC_28
BC_29
BC_30
BC_31
BC_32
BC_33
BC_34
BC_35
BC_36
BC_37
BC_38
BC_39
BC_40
AAAAAAAAAAAAAAAA-1
0
0
0
0
0
0
1
0
1
0
0
0
0
0
0
0
0
0
0
0
AAAAAAAAAAAAAAAC-1
0
0
1
0
0
0
0
0
0
0
0
0
0
1
0
0
1
0
0
0
AAAAAAAAAAAAAAAG-1
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
AAAAAAAAAAAAAAAT-1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
AAAAAAAAAAAAAATT-1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
TTTTTGTCGAAGCGCG-2
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
TTTTTGTGTGCCTGAG-2
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
TTTTTTACCTTTAGAC-2
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
TTTTTTAGGTGGTCCG-2
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
TTTTTTTTTTTTTTTT-2
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
888683 rows × 20 columns

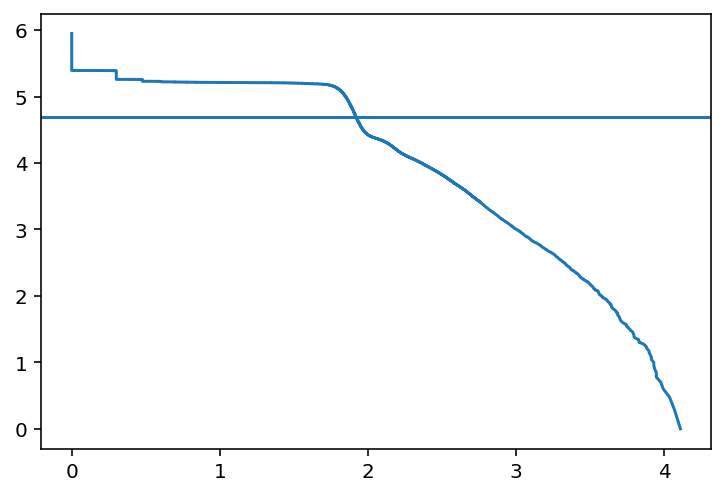

Use knee-plot to set cutoff for real cells with high-quality ClickTags
ClickTag_counts_sorted = copy.deepcopy(ClickTagCounts.T.sum())
ClickTag_counts_sorted = ClickTag_counts_sorted.sort_values(ascending=False)
plt.plot(ClickTag_counts_sorted.apply(np.log10),np.log10(range(len(ClickTag_counts_sorted))))
plt.axhline(np.log10(50000))
plt.show()
/usr/local/lib/python3.6/dist-packages/ipykernel_launcher.py:3: RuntimeWarning: divide by zero encountered in log10
This is separate from the ipykernel package so we can avoid doing imports until
ClickTag_counts_filtered=ClickTagCounts.loc[list(ClickTag_counts_sorted[:50000].index)]
filtered_ClickTag_counts=ClickTag_counts_filtered.T
filtered_ClickTag_counts
hits = 0
counter = 1
for barcode in filtered_ClickTag_counts.index:
for i in filtered_ClickTag_counts:
if filtered_ClickTag_counts[i].idxmax() == barcode:
if hits ==0:
sortedheatmap_dtf=pd.DataFrame({counter:filtered_ClickTag_counts[i]})
hits+=1
counter+=1
else:
sortedheatmap_dtf = sortedheatmap_dtf.assign(i = filtered_ClickTag_counts[i])
sortedheatmap_dtf.rename(columns = {'i':counter}, inplace = True)
counter+=1
filtered_ClickTag_counts=copy.deepcopy(sortedheatmap_dtf)
percentClickTags_counts = copy.deepcopy(filtered_ClickTag_counts)
for i in filtered_ClickTag_counts:
percentClickTags_counts[i] = filtered_ClickTag_counts[i]/filtered_ClickTag_counts[i].sum()

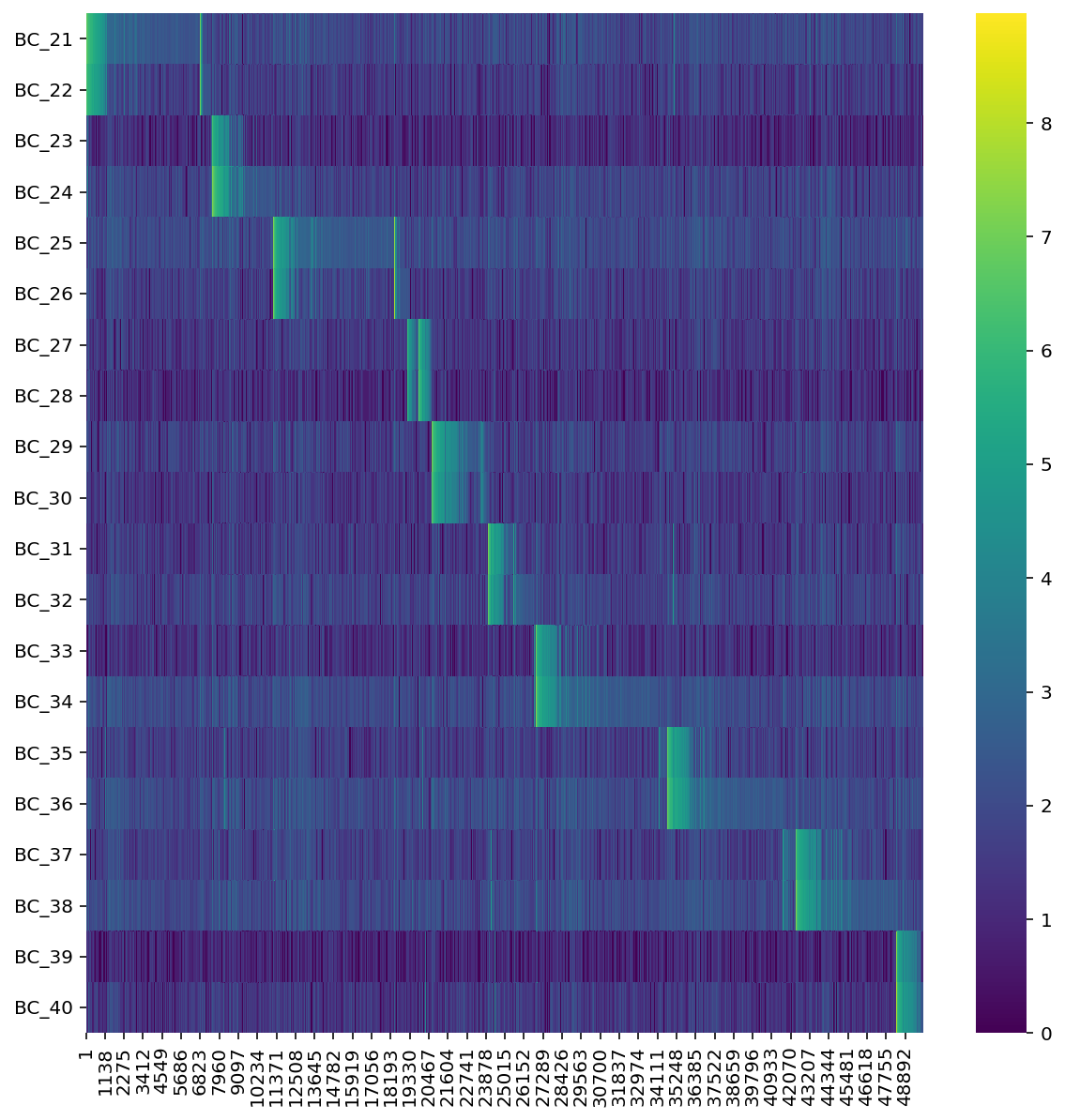

fig, ax = plt.subplots(figsize=(10,10))
sns.heatmap(np.log1p(filtered_ClickTag_counts), cmap='viridis')
plt.show()
fig, ax = plt.subplots(figsize=(10,10))
sns.heatmap(percentClickTags_counts, cmap='viridis')
plt.show()
filtered_ClickTag_counts
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
...
49961
49962
49963
49964
49965
49966
49967
49968
49969
49970
49971
49972
49973
49974
49975
49976
49977
49978
49979
49980
49981
49982
49983
49984
49985
49986
49987
49988
49989
49990
49991
49992
49993
49994
49995
49996
49997
49998
49999
50000
BC_21
4838
4466
4020
4029
3849
3388
3145
3134
3080
2732
2187
2348
1854
2130
2027
1845
1950
2160
1688
1762
1713
1578
1426
1373
1460
1484
1466
1264
1365
1427
1209
1335
1128
1257
1204
1084
1140
909
1164
1273
...
3
7
7
7
7
3
4
3
3
2
5
7
1
7
2
5
8
7
6
5
3
5
3
3
8
3
4
6
5
7
5
4
8
3
0
4
6
4
4
4
BC_22
3502
3433
3298
3142
3095
2532
2738
2227
2242
2120
2052
1842
1771
1534
1609
1609
1436
1131
1468
1351
1220
1260
1368
1249
1142
1145
1131
960
1099
1029
1075
860
1036
950
976
992
972
531
932
827
...
1
7
4
4
4
4
1
4
2
5
1
2
2
1
2
3
4
5
0
3
4
6
1
2
5
6
4
3
3
2
1
7
1
3
2
2
4
4
2
2
BC_23
9
10
10
10
9
12
13
3
7
13
4
8
4
5
6
7
5
8
7
2
8
6
2
6
2
1
3
2
3
3
1
5
3
1
5
0
7
171
1
3
...
1
4
0
3
3
1
3
2
2
2
1
1
2
2
4
2
0
0
3
4
3
0
0
0
1
0
3
3
5
2
0
2
0
0
1
2
3
1
3
4
BC_24
25
25
22
18
17
22
19
26
16
23
19
10
8
17
15
11
13
15
6
14
10
6
12
14
21
11
7
10
8
14
5
2
5
6
14
13
13
472
9
9
...
2
8
2
4
5
6
3
6
4
0
2
3
5
5
1
8
5
4
4
6
7
6
3
5
5
3
3
7
4
2
4
6
4
6
4
3
6
2
3
7
BC_25
31
29
22
27
30
35
30
24
13
25
20
12
23
19
13
15
13
19
20
13
17
10
18
13
22
11
9
11
11
16
18
17
15
13
10
14
10
24
7
11
...
4
3
5
5
4
6
4
3
5
5
1
4
6
8
2
4
4
7
5
4
5
8
2
4
5
1
6
3
7
5
5
5
3
3
8
3
8
6
5
7
BC_26
30
23
23
19
29
20
21
20
20
18
9
18
16
8
10
10
11
9
10
17
14
11
15
14
12
13
17
9
13
10
9
8
10
9
8
14
10
16
13
10
...
2
5
8
0
4
4
2
5
2
6
1
4
4
3
0
6
5
4
3
2
1
6
0
4
2
9
8
7
5
4
2
4
3
3
3
5
4
6
3
3
BC_27
15
19
10
17
11
7
10
8
17
13
10
14
14
6
8
12
5
7
12
12
6
7
2
11
11
10
12
9
11
3
9
1
10
6
6
7
1
10
4
4
...
0
1
9
4
3
1
2
0
2
1
2
3
2
0
4
2
4
2
7
2
4
2
3
3
1
0
1
1
4
0
6
4
3
2
0
4
4
5
7
4
BC_28
19
12
15
14
17
9
12
10
13
5
10
9
12
8
7
5
5
6
6
10
6
4
4
1
5
8
8
3
6
4
10
5
3
2
2
12
7
6
6
9
...
1
0
1
5
2
6
1
0
1
2
0
1
2
5
1
1
3
2
5
3
0
1
2
2
6
1
1
1
1
2
0
1
1
0
1
1
0
3
2
2
BC_29
9
21
22
19
13
14
14
12
20
22
12
11
10
10
12
11
10
12
15
11
13
8
12
8
10
7
11
9
9
10
8
13
9
7
6
16
10
6
11
6
...
1
7
3
4
8
3
4
15
1
4
2
4
7
8
3
6
3
4
3
1
3
4
0
7
6
6
4
3
4
4
3
1
9
3
9
2
4
4
4
3
BC_30
13
5
17
9
13
12
11
7
5
10
11
9
6
3
5
4
8
4
7
6
8
5
9
7
6
6
7
7
5
4
6
8
5
5
4
12
4
2
9
1
...
5
2
1
2
1
2
2
13
4
3
2
0
3
3
1
3
2
2
2
3
3
5
2
4
1
2
2
2
2
0
4
3
6
2
7
7
5
6
0
3
BC_31
9
15
9
13
14
14
19
10
18
16
14
15
22
9
13
10
9
7
12
11
11
8
7
9
16
6
9
11
11
3
8
8
10
4
4
8
8
8
11
6
...
5
1
2
4
3
4
3
1
2
4
2
0
3
3
4
2
1
6
2
1
2
1
2
5
2
5
2
4
6
3
3
3
3
1
3
4
1
2
2
6
BC_32
23
20
10
18
14
13
9
8
13
15
5
10
20
13
12
9
14
9
12
11
7
9
12
15
8
6
5
5
7
9
13
8
12
9
7
8
7
8
5
5
...
0
4
4
5
4
4
4
0
6
5
1
3
3
2
3
4
3
6
5
5
7
6
5
3
5
7
2
2
3
2
4
6
6
4
6
6
5
3
4
6
BC_33
15
11
13
9
13
10
17
10
12
8
11
9
7
9
9
5
7
5
8
5
7
6
6
6
4
6
3
122
7
6
7
9
5
5
5
9
10
7
3
6
...
0
2
1
2
0
1
3
0
1
2
1
2
6
3
3
2
5
0
1
1
3
0
2
4
2
1
2
1
3
3
3
0
3
3
2
0
3
2
4
1
BC_34
19
24
29
22
23
23
19
19
20
24
14
16
21
14
7
13
23
15
16
10
14
9
14
14
7
8
9
183
7
15
13
14
14
6
10
17
8
7
8
11
...
1
7
1
8
4
7
10
2
3
10
4
6
6
6
6
9
5
7
8
6
8
5
4
6
5
4
4
7
6
8
2
7
4
7
5
4
7
5
3
3
BC_35
18
20
16
20
9
19
23
12
24
13
14
19
25
7
12
12
9
8
11
9
28
6
9
11
7
7
5
10
9
14
10
4
9
3
7
10
5
9
10
7
...
2
5
6
2
2
6
2
0
4
4
0
6
6
5
2
4
2
2
3
3
3
3
3
6
7
1
2
6
2
4
4
4
1
5
1
4
0
2
8
3
BC_36
21
28
22
20
23
11
22
20
19
26
18
16
25
10
15
17
15
14
15
9
45
10
14
10
6
8
10
12
15
9
15
12
15
7
11
18
8
9
12
12
...
2
5
5
6
9
5
5
2
3
6
3
5
7
5
7
2
4
6
4
6
7
5
10
4
5
9
5
4
5
7
8
3
5
6
9
7
7
6
6
5
BC_37
20
14
18
15
17
15
16
10
10
10
16
9
16
10
8
8
6
9
7
10
10
8
6
9
13
9
8
5
5
9
10
14
4
2
4
8
4
5
2
7
...
2
3
5
4
3
2
5
0
4
5
0
6
7
2
5
6
3
4
2
8
3
4
4
6
5
5
8
4
3
8
2
7
2
7
5
6
4
3
6
5
BC_38
17
24
36
26
16
32
26
16
23
20
15
16
17
12
21
20
16
15
14
15
13
12
13
12
16
13
9
26
13
8
13
12
8
11
8
26
8
14
9
7
...
1
5
7
7
6
7
7
2
1
8
1
4
5
5
7
2
5
4
3
7
8
6
4
6
5
4
7
5
3
8
4
7
7
11
5
8
3
6
5
4
BC_39
12
13
8
7
9
6
6
6
7
4
8
4
6
5
4
6
6
2
2
5
7
3
4
5
2
4
4
2
2
9
3
7
2
2
2
10
2
8
4
2
...
19
0
4
1
4
5
9
9
11
1
20
12
1
3
6
5
3
3
6
4
1
2
7
3
0
4
7
1
4
4
6
2
3
2
2
1
0
5
1
3
BC_40
14
12
10
7
17
11
9
8
7
14
11
6
9
13
7
9
8
5
8
8
15
10
8
8
4
1
2
5
5
5
8
5
7
4
8
7
1
4
5
5
...
35
11
12
10
11
10
12
19
25
11
37
13
8
10
23
10
17
10
13
11
10
10
28
8
9
13
9
14
9
9
18
8
12
12
10
10
9
8
11
8
20 rows × 50000 columns
adata = sc.AnnData(ClickTag_counts_filtered)
adata.var_names= list(ClickTag_counts_filtered.columns)
adata.obs_names= list(ClickTag_counts_filtered[:50000].index)
AnnData object with n_obs × n_vars = 50000 × 20
Cluster ClickTag counts to determine high quality cells (cells strongly marked by the assigned barcodes)
adata
sc.pp.filter_genes(adata, min_counts=0)
sc.pp.normalize_per_cell(adata, counts_per_cell_after=10000)
adata.obs['n_countslog']=np.log(adata.obs['n_counts'])
sc.pp.log1p(adata)
sc.pp.regress_out(adata, ['n_counts'])
sc.tl.tsne(adata, perplexity=30, use_rep=None)
sc.pp.neighbors(adata)
sc.tl.umap(adata)
sc.tl.louvain(adata, resolution=2)

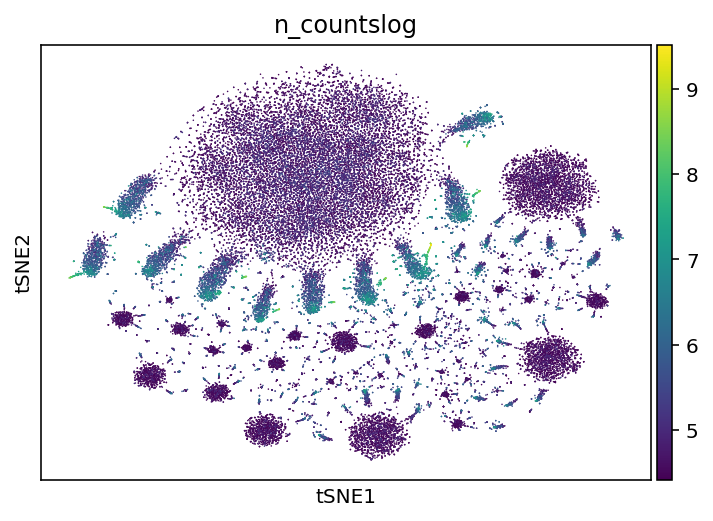

sc.pl.tsne(adata, color='n_countslog')
sc.set_figure_params(dpi=120)

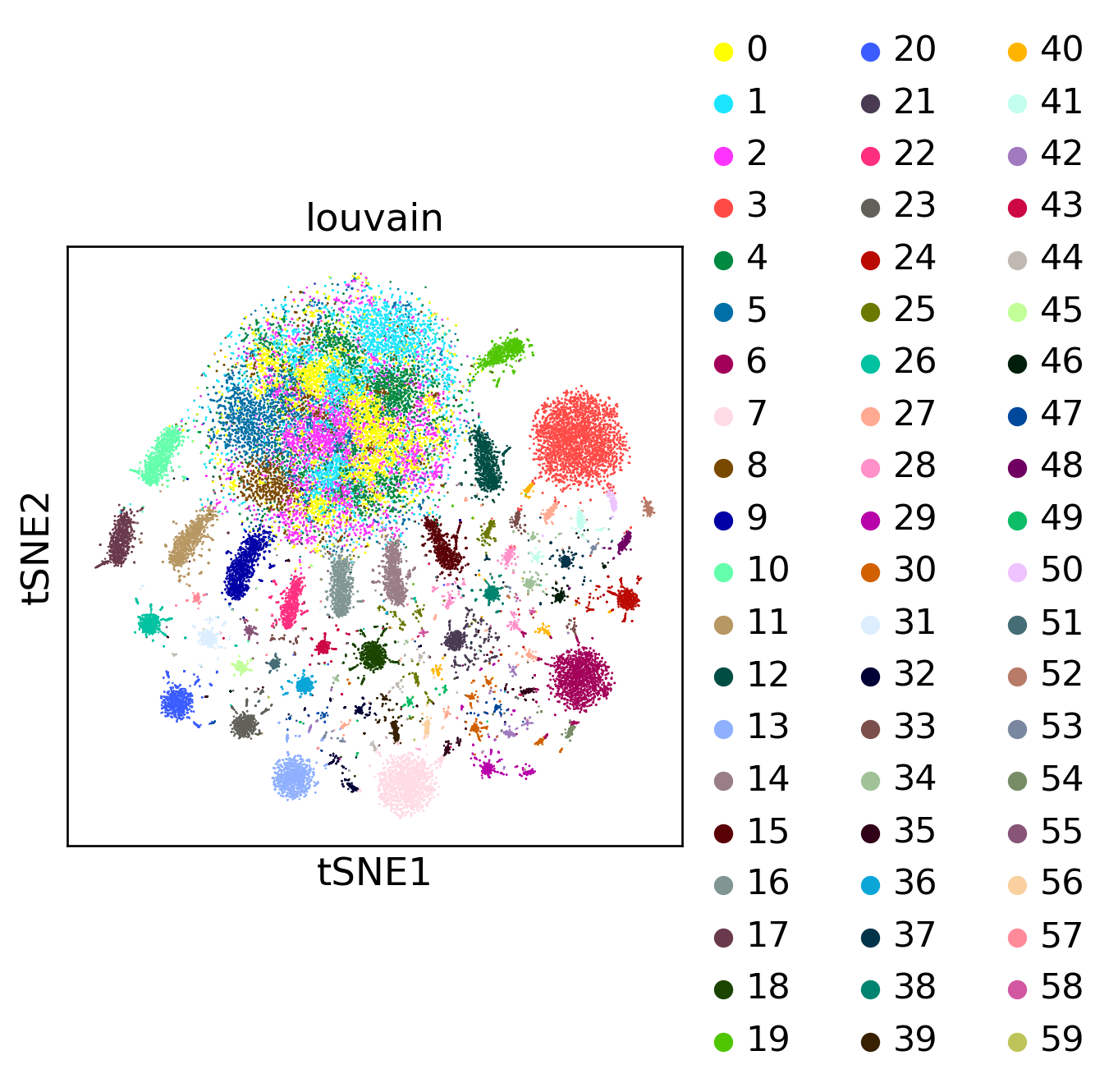

sc.pl.tsne(adata,color=['louvain'])
# sc.pl.tsne(adata, color=adata.var_names)
# for i in range(20):
# sc.pl.violin(adata[adata.obs['louvain'].isin([str(i)])], keys=adata.var_names)
# sc.pl.tsne(adata, color=['louvain'],palette='rainbow',legend_loc='on data')
/ usr / local / lib / python3 . 6 / dist - packages / statsmodels / tools / _testing . py : 19 : FutureWarning : pandas . util . testing is deprecated . Use the functions in the public API at pandas . testing instead .
import pandas.util.testing as tm
WARNING : Consider installing the package MulticoreTSNE ( https : // github . com / DmitryUlyanov / Multicore - TSNE ) . Even for n_jobs = 1 this speeds up the computation considerably and might yield better converged results .

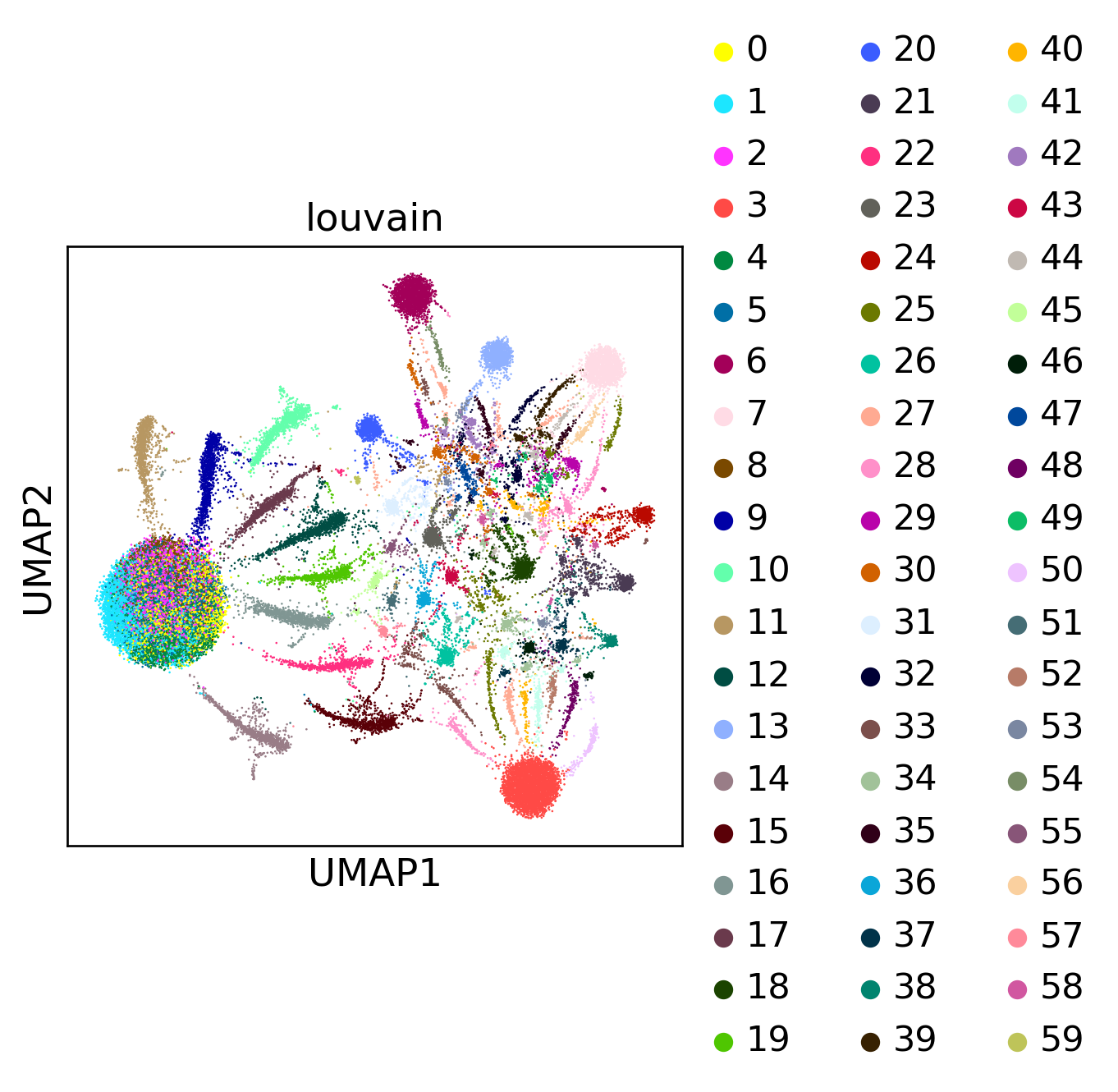

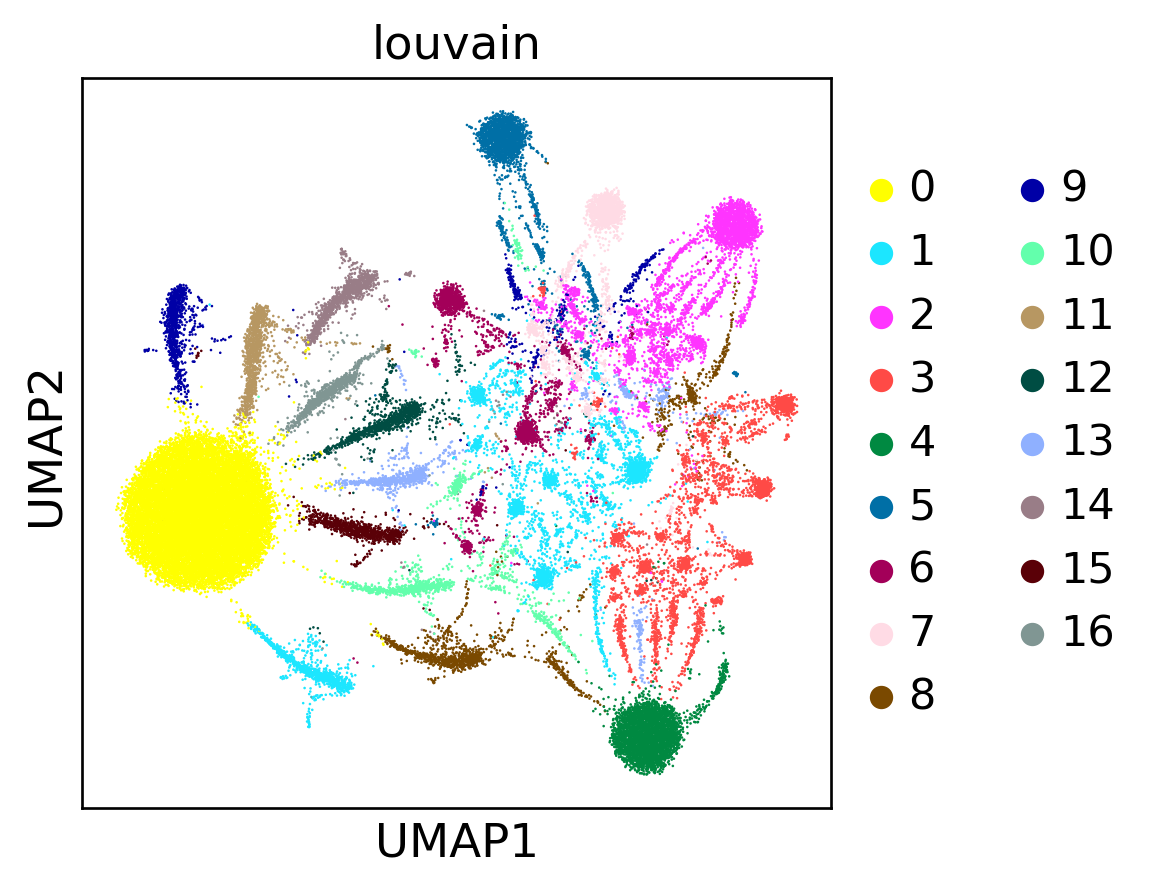

sc.pl.umap(adata, color='louvain')
sc.pl.umap(adata, color='n_countslog')

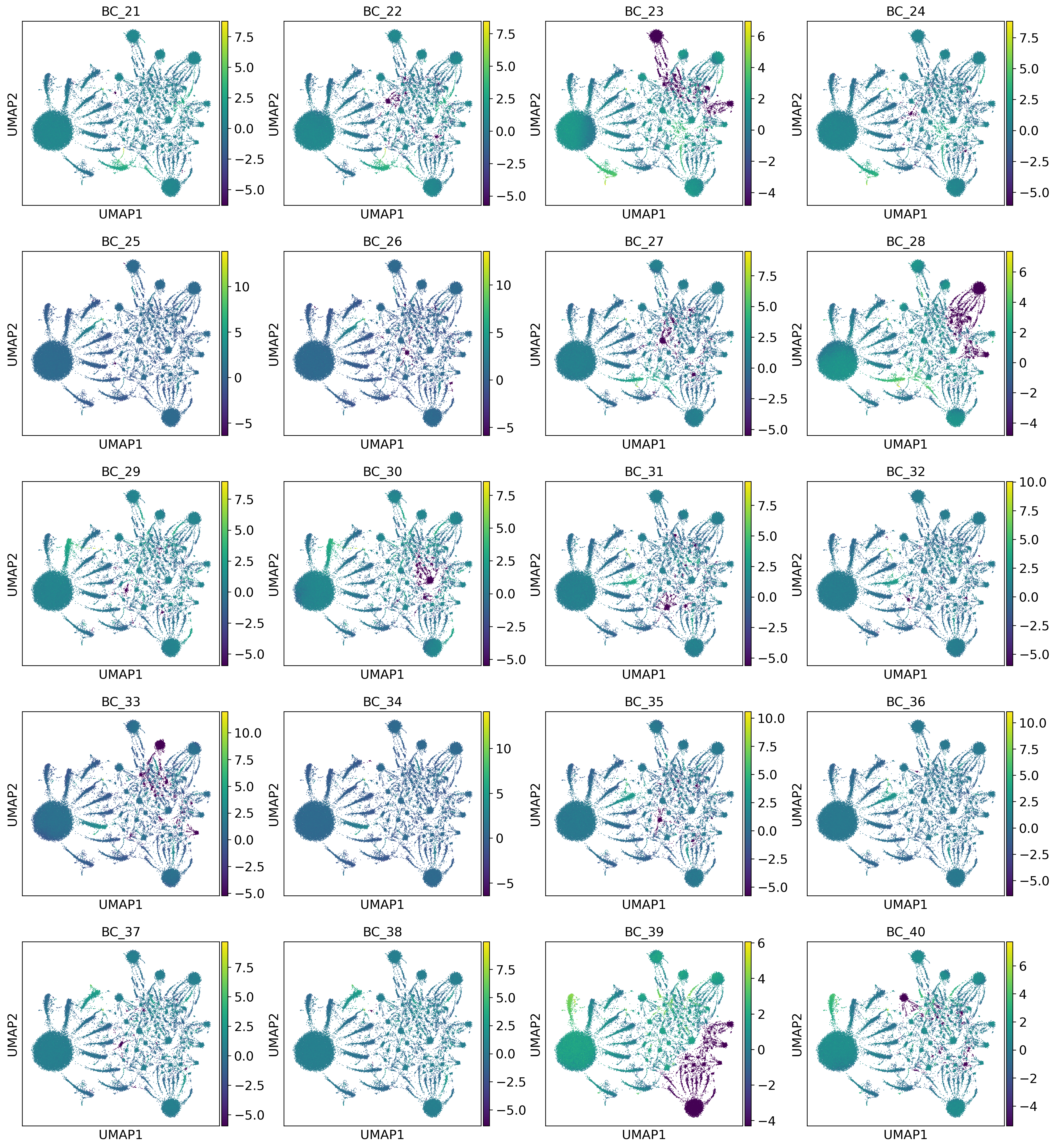

sc.pl.umap(adata, color=adata.var_names)
sc.tl.louvain(adata, resolution=0.15)#0.15
sc.pl.umap(adata, color='louvain')
Select ClickTag Clusters with Clean Expression
adata_sub = adata[adata.obs['louvain'].isin(['1','8','9','10','11','12','13','14','15','16'])]
adata_sub
sc.tl.louvain(adata_sub, random_state=42,resolution=0.05, key_added='louvain_new')
sc.tl.umap(adata_sub,random_state = 42,spread=0.5 )

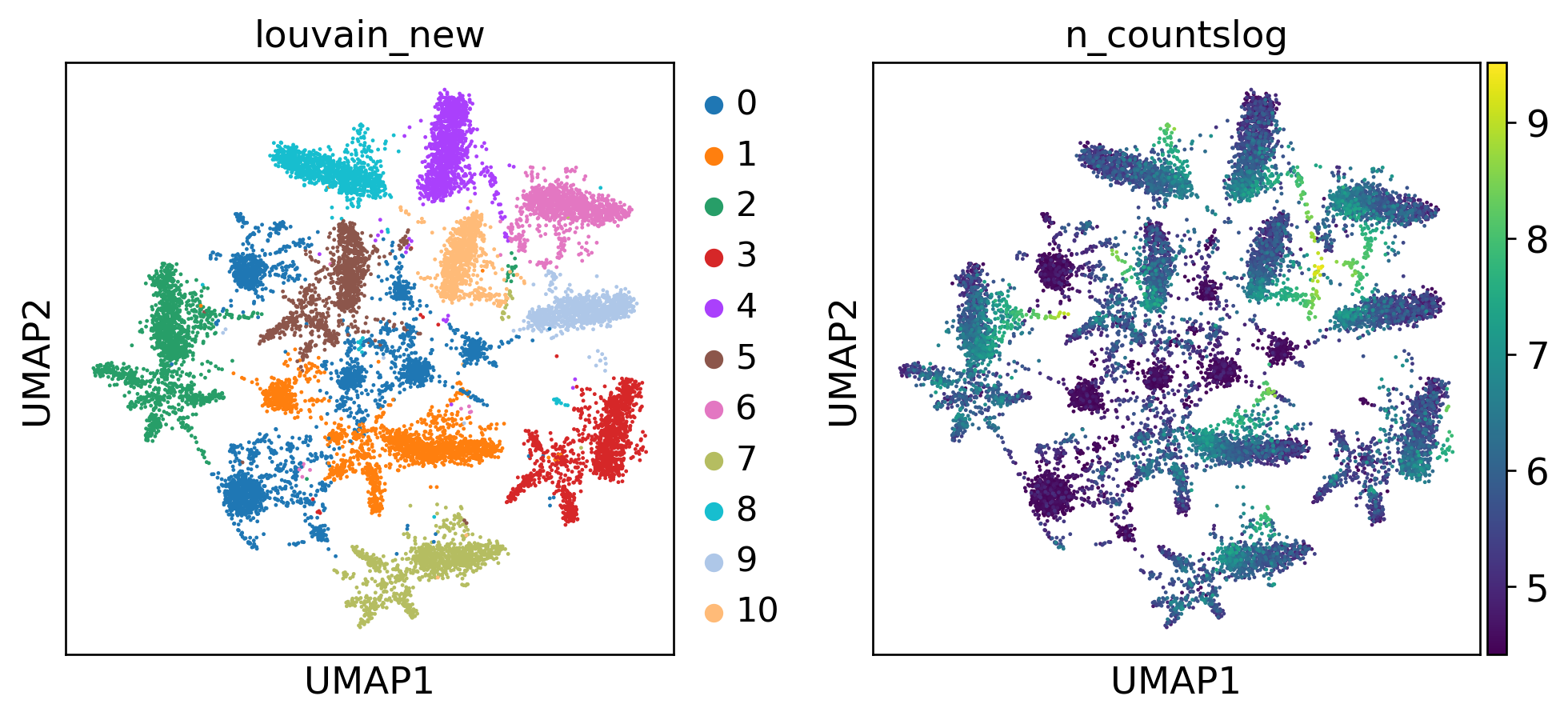

sc.pl.umap(adata_sub, color=['louvain_new','n_countslog'])
Compare ClickTag Counts/Cell Filtering to Previous Cell Ranger-based Analysis (Found in this notebook )
AnnData object with n_obs × n_vars = 50000 × 20
obs : 'n_counts' , 'n_countslog' , 'louvain'
var : 'n_counts'
uns : 'log1p' , 'neighbors' , 'umap' , 'louvain' , 'louvain_colors'
obsm : 'X_tsne' , 'X_umap'
obsp : 'distances' , 'connectivities'
n_counts
n_countslog
louvain
CCATGTCAGTGTTTGC-2
13584.0
9.516648
5
AGGCCGTCAATCGAAA-2
12926.0
9.466996
5
CGCTGGACAAGACGTG-1
11720.0
9.369052
5
CTCGAGGTCACAATGC-1
10908.0
9.297252
5
CACACCTGTCTGATCA-1
9881.0
9.198369
5
...
...
...
...
TGACTAGTCAAACGGG-1
83.0
4.418840
0
CGGACGTAGTAGCGGT-1
83.0
4.418840
0
AACTCTTGTTGCCTCT-1
83.0
4.418840
0
ACGAGGAGTAAGTTCC-1
83.0
4.418840
0
GGGAATGAGCGTTGCC-2
83.0
4.418840
0
50000 rows × 3 columns
#Read in clustered, filtered adata from Cell Ranger analysis of Starvation data
!mv D1.1798 D1.1798.h5ad
old=sc.read('D1.1798.h5ad')
n_counts
n_countslog
louvain
orgID
fed
starved
fed_ord
starved_ord
new_fed
fed_neighbor_score
index
AAACCTGAGAGGGCTT-1
2188.0
3.340047
10
3
True
False
True
False
True
14
AAACCTGAGAGGTTAT-1
1565.0
3.194514
4
9
False
True
False
True
False
0
AAACCTGAGCGAGAAA-1
342.0
2.534026
3
3
True
False
True
False
True
3
AAACCTGAGCGTGTCC-1
4694.0
3.671543
15
10
False
True
False
True
False
5
AAACCTGAGGATTCGG-1
4876.0
3.688064
3
8
False
True
False
True
False
2
...
...
...
...
...
...
...
...
...
...
...
TTTGTCAGTGGACGAT-2
2625.0
3.419129
24
4
True
False
True
False
True
8
TTTGTCATCATCTGTT-2
664.0
2.822168
2
7
False
True
False
True
False
8
TTTGTCATCGCCTGAG-2
433.0
2.636488
6
7
False
True
False
True
False
4
TTTGTCATCTAACGGT-2
31328.0
4.495933
22
3
True
False
True
False
True
6
TTTGTCATCTGAGTGT-2
734.0
2.865696
0
9
False
True
False
True
False
2
13673 rows × 10 columns
adata['AAACCTGAGAGGGCTT-1'].obs
n_counts
n_countslog
louvain
AAACCTGAGAGGGCTT-1
258.0
5.552959
13
adata['AAACCTGAGCGAGAAA-1'].obs
n_counts
n_countslog
louvain
AAACCTGAGCGAGAAA-1
279.0
5.631212
13
adata['TTTGTCATCTAACGGT-2'].obs
n_counts
n_countslog
louvain
TTTGTCATCTAACGGT-2
1815.0
7.503841
13
counter=0
for x in old[old.obs['orgID']=='2'].obs_names:
print(adata[x].obs['louvain'][0])
counter+=1
if counter==100:break
11
11
11
11
11
1
0
4
2
11
11
11
11
11
1
2
1
11
1
4
2
11
11
11
11
11
1
1
11
1
2
11
1
11
2
11
11
1
11
11
11
1
4
1
11
4
11
2
1
11
11
11
1
4
11
1
2
11
1
11
11
11
11
4
4
11
11
1
2
11
4
1
11
11
11
11
2
11
11
11
1
11
4
11
11
2
1
1
2
11
11
11
11
2
11
0
1
11
11
1
View of AnnData object with n_obs × n_vars = 0 × 2657
obs : 'n_counts' , 'n_countslog' , 'louvain' , 'orgID' , 'fed' , 'starved' , 'fed_ord' , 'starved_ord' , 'new_fed' , 'fed_neighbor_score'
var : 'n_counts' , 'n_cells'
uns : 'fed_ord_colors' , 'louvain' , 'louvain_colors' , 'louvain_sizes' , 'neighbors' , 'new_fed_colors' , 'orgID_colors' , 'paga' , 'pca' , 'rank_genes_groups' , 'starved_ord_colors'
obsm : 'X_pca' , 'X_tsne' , 'X_umap'
varm : 'PCs'
obsp : 'distances' , 'connectivities'
adata[x].obs['louvain'][0]
counter=0
for x in old.obs_names:
if x not in adata.obs_names:
print(x)
AACTGGTAGGGAAACA-2
AAGGTTCCACGAAACG-2
ACCTTTATCCGGCACA-2
ACGCCGACAGCTCGCA-2
ATAGACCGTTAAGGGC-2
CCCTCCTCATCGTCGG-2
CCTCAGTCAGGAATGC-2
CGATTGACATACGCTA-2
CGGAGTCGTTTGGCGC-2
CTGGTCTGTCAGAGGT-2
GACAGAGCAAGCCGCT-2
GATCGTATCCATGAAC-2
TACTCATCAAGGTTTC-2
TGGTTAGCATGTCGAT-2
TTAGTTCTCTCCAACC-2
TTTGTCAAGGGCATGT-2
#ClickTag lane 1 counts estimated from Cell Ranger analysis
jelly1tags=pd.read_csv('D1.1799')
jelly1tags
Unnamed: 0
ACACCCTGTCATCGGC
CGATTGAGTACTCTCC
GACACGCTCCGAACGC
AGATCTGCAGGACCCT
CGATCGGGTGTCGCTG
CACACCTCATTGTGCA
CTCCTAGCATCTCGCT
CCACTACCATATACGC
ACTATCTCAAGCCGTC
CCACCTACAAATACAG
ATAAGAGCAATTCCTT
CAGAGAGGTACATGTC
AAAGCAAAGAAAGTGG
CAGCTAATCCGTTGCT
AGTGGGAAGATGTGGC
CAGCCGAAGCGATAGC
ATCATCTTCGGAGGTA
GATCGATAGGGTCGAT
CGTGAGCCACAAGCCC
TTGGCAACAGTAAGCG
ACATCAGAGACTGGGT
AGTCTTTTCTACTTAC
CTGGTCTCAAGGTTCT
GTTACAGCAGCGTAAG
AGCTCTCCATCACAAC
TGCTACCGTTAAGGGC
GCGCAACTCATTCACT
TCCCGATCAAGTTCTG
GGGTCTGAGCCTCGTG
GCATACAGTTAGGGTG
TCAGGATGTGGTAACG
CGAATGTGTTGCGCAC
GGGTCTGCACAGACAG
TCACAAGCAGCCAATT
GCGAGAAAGCAGCGTA
CTCACACCATTACCTT
CAGTAACCAATCCGAT
ATCGAGTCATTGGTAC
GTCCTCACATCACAAC
...
GCGCAACGTTATCGGT
AGTGAGGAGCCAGGAT
CGAACATAGGGTATCG
TAGCCGGTCGATGAGG
GACTACAAGCACGCCT
CATGCCTAGAAACGAG
CGAGCCAAGTGTACGG
ACATGGTAGCTAAACA
GTAACGTCAAAGTGCG
ATCCGAACAACACCTA
TAAACCGAGGTGTTAA
GAATGAAAGGCCATAG
AGCGTATCATGCGCAC
CCATGTCAGCTGAACG
TGCGTGGCATAAAGGT
ACTGTCCGTAGAGTGC
GTACGTAAGTTGTAGA
ACAGCCGCATTTCAGG
ATTCTACTCCATGCTC
GGACAAGTCGTTTGCC
TGACAACAGGACATTA
CAAGAAAAGTACGTAA
TGACTTTCATGCAACT
CTTACCGGTGCAGACA
TGACTTTGTGCCTGCA
TGCGCAGCAACCGCCA
GGACATTAGGGCTCTC
ACGATGTGTTAGAACA
TAAACCGTCAACGCTA
TGTGGTATCAACACGT
GTTACAGCACCAGGCT
GTATCTTAGCTGCAAG
GTACGTAGTATATCCG
CGTAGCGTCCTATGTT
TGTCCCAGTCTACCTC
ATGCGATAGATCCCAT
AGTGGGATCTGATACG
TCGGGACGTTTACTCT
TTTGGTTCATGTCTCC
CTTTGCGGTAGTACCT
0
BC_21
0
5
0
1
0
3
7
0
0
4
0
8
0
0
0
4
4
0
5
0
0
0
5
0
0
4
0
0
8
0
0
0
0
1
0
0
0
0
1
...
0
9
0
0
0
0
0
0
0
7
0
0
0
0
0
0
3
3
0
0
0
0
0
2
5
0
0
4
5
0
0
3
0
0
3
9
0
0
0
0
1
BC_22
0
1
0
4
0
1
2
0
0
2
0
7
0
0
0
7
6
0
7
0
0
0
3
0
0
6
0
0
4
0
0
0
0
2
0
1
0
0
0
...
0
3
0
0
0
0
0
0
0
1
0
0
0
0
0
1
2
1
0
0
0
0
1
4
2
0
0
6
9
0
0
1
0
0
7
3
0
0
0
0
2
BC_23
0
1
0
7
0
1
5
0
0
0
0
2
0
0
0
4
2
0
2
0
0
0
1
0
0
0
0
0
1
0
0
0
0
1
0
0
0
0
0
...
0
2
0
0
0
0
0
0
0
2
0
0
0
0
0
0
4
4
1
0
0
0
0
2
5
0
0
3
1
0
0
5
0
0
0
2
0
0
0
0
3
BC_24
0
6
0
1
0
5
8
0
0
2
0
3
0
0
0
4
4
0
1
0
0
0
1
0
0
7
0
0
3
0
0
0
0
1
0
0
0
0
0
...
0
1
0
1
1
0
0
0
2
7
0
0
0
0
0
0
5
1
0
0
0
0
0
3
11
0
0
4
5
0
0
5
0
0
7
4
1
0
0
0
4
BC_25
0
13
0
6
0
4
2
0
0
9
0
16
0
0
0
8
3
1
6
0
0
0
4
0
0
10
0
0
2
0
0
0
0
2
0
0
0
0
0
...
0
7
0
0
0
0
0
0
0
3
0
0
0
0
0
0
4
5
0
0
0
0
0
6
5
0
0
8
6
0
0
4
0
0
6
7
0
0
0
0
5
BC_26
1
2
0
5
0
5
3
0
0
6
0
7
0
0
0
5
1
0
4
1
0
0
1
0
0
9
0
0
3
0
0
0
0
5
0
0
0
0
0
...
0
5
0
0
0
0
0
0
0
1
0
0
0
0
0
0
5
9
0
0
0
0
0
8
8
0
0
4
3
0
0
8
0
1
2
4
0
1
1
0
6
BC_27
0
4
0
2
0
1
3
0
0
1
0
2
0
0
0
2
1
0
3
0
0
0
0
0
0
5
0
0
0
0
0
0
0
1
0
0
0
0
0
...
0
1
1
0
0
0
1
0
0
5
0
0
0
0
0
0
1
4
0
1
0
0
0
2
2
1
0
4
5
0
0
1
0
0
3
3
0
0
0
0
7
BC_28
0
2
0
2
0
0
5
0
0
3
0
4
0
0
0
2
0
0
6
0
0
0
2
0
0
2
0
0
4
0
0
0
0
1
0
0
0
0
0
...
0
0
0
0
0
0
0
0
0
4
0
0
0
0
0
0
3
1
0
0
0
0
0
2
3
0
0
2
1
0
0
3
0
0
1
1
0
0
0
0
8
BC_29
0
7
1
1
0
1
9
1
0
2
0
7
0
0
0
6
3
0
5
0
0
0
3
1
0
8
0
0
2
0
0
0
0
2
0
0
0
0
0
...
0
3
0
0
0
0
0
0
0
1
0
0
0
0
0
0
6
4
0
0
0
0
0
4
8
0
0
1
5
0
1
4
0
0
6
8
0
0
0
0
9
BC_30
0
4
0
0
0
3
3
0
0
5
0
3
1
0
0
4
1
0
3
0
0
0
0
0
0
1
0
0
2
1
0
0
1
2
0
0
0
0
0
...
0
1
0
0
0
0
0
0
0
3
0
0
0
0
0
0
2
1
0
0
0
0
0
1
2
0
0
3
2
0
0
4
0
0
0
5
0
0
0
0
10
BC_31
0
7
0
4
0
2
2
0
0
5
0
5
0
0
0
4
2
0
8
0
0
0
0
0
0
2
0
0
1
0
0
0
0
82
0
0
0
0
0
...
0
5
0
0
0
0
0
0
0
4
0
0
0
0
1
0
2
3
0
0
0
1
0
3
5
0
0
4
2
0
0
2
0
0
1
5
0
0
0
0
11
BC_32
1
2
0
5
0
2
2
0
1
5
0
5
0
1
0
3
11
0
5
0
0
0
0
0
0
5
0
0
3
0
1
0
0
109
0
0
1
0
0
...
0
3
0
0
0
0
0
0
0
7
0
0
0
0
0
0
4
5
0
0
0
0
0
4
6
0
0
4
4
0
0
3
0
0
0
10
0
0
0
0
12
BC_33
0
1
0
0
0
3
2
0
0
2
0
1
0
0
0
2
3
0
1
0
0
0
2
0
0
4
0
0
6
0
0
0
0
4
1
0
0
0
0
...
0
2
0
0
0
0
0
0
0
3
0
0
0
0
0
0
0
4
0
0
0
0
0
1
1
0
0
4
3
0
0
4
0
0
4
4
0
0
0
0
13
BC_34
0
11
0
6
0
8
3
0
0
7
0
4
0
0
1
5
5
0
7
0
1
0
4
0
0
5
1
0
2
0
0
0
0
4
0
0
0
0
0
...
0
3
0
0
1
0
0
0
0
3
1
0
0
0
0
0
5
4
0
0
0
0
0
7
4
0
0
3
5
0
0
2
1
0
6
7
0
0
1
0
14
BC_35
0
6
0
2
0
2
2
0
0
2
1
1
0
0
0
5
1
0
5
0
0
0
1
0
0
1
0
0
1
0
0
0
0
2
0
0
0
1
0
...
0
8
0
0
0
0
0
0
0
6
0
0
0
0
0
0
3
2
0
0
0
0
0
3
3
0
1
2
5
0
0
1
0
0
3
6
0
0
0
0
15
BC_36
0
4
0
6
0
7
5
0
1
8
0
8
0
0
0
6
8
0
13
0
0
0
3
0
0
3
0
1
5
0
0
0
0
8
0
0
0
0
0
...
0
4
0
0
0
1
0
0
0
8
0
1
0
0
0
0
3
7
0
0
1
0
0
4
5
0
0
8
7
0
0
6
0
0
0
8
0
0
0
1
16
BC_37
0
6
0
4
0
1
5
0
0
5
0
3
0
0
0
3
5
0
6
0
0
0
13
0
0
1
0
0
4
0
0
0
0
3
0
0
0
0
0
...
0
7
0
0
0
0
0
1
0
4
0
0
1
0
0
0
2
2
0
0
0
0
0
8
1
0
0
6
6
0
0
15
0
0
7
1
0
0
0
0
17
BC_38
0
10
0
6
0
4
6
0
0
8
0
4
0
0
0
8
10
0
12
0
0
1
12
0
0
7
0
0
3
0
0
1
0
4
0
0
0
0
0
...
0
7
0
0
0
0
0
0
0
2
0
0
1
0
0
0
7
5
0
0
0
0
0
3
5
0
0
6
6
0
0
18
0
0
8
2
0
0
0
0
18
BC_39
0
0
0
1
0
2
0
0
0
0
0
1
0
0
0
2
0
0
3
0
0
0
2
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
...
0
2
0
0
0
0
0
0
0
0
0
0
0
1
0
0
1
1
0
0
0
0
0
3
2
1
0
1
1
0
0
2
0
0
4
1
0
0
0
0
19
BC_40
0
2
0
0
0
3
7
0
0
4
0
2
0
0
0
2
2
0
4
0
0
0
1
0
1
1
0
0
2
0
0
0
0
4
0
0
0
0
0
...
0
4
0
0
0
0
0
0
0
2
0
0
0
0
0
0
4
0
0
0
0
0
0
4
1
0
0
2
1
1
0
4
0
0
2
1
0
0
0
0
20 rows × 234269 columns
#ClickTag lane 2 counts estimated from Cell Ranger analysis
jelly2tags=pd.read_csv('D1.1800')
jelly2tags
Unnamed: 0
GATTCAGAGGCATGGT
GCAGCCAAGTGGGCTA
CTAATGGGTGCTGTAT
CAAGGCCAGAAGGGTA
CGCTTCAGTATCAGTC
AACACGTGTTGCGTTA
CTAGAGTCACCAGGCT
CCATGTCCACAAGCCC
GGCTGGTGTCTCTTAT
TCACAAGCACCCATTC
TTCTACAAGCCTCGTG
GCGAGAACAAGGTTCT
TGGGCGTAGAGTGAGA
AGTTGGTGTGTGGCTC
GCTCCTAGTGATAAGT
GGATTACCAGTATCTG
GGTGCGTCAATGGAAT
ATCCACCCACCAGTTA
TCGAGGCAGCCACTAT
AAACCTGTCCTGTACC
CAGCTAACACGGTAGA
GTTACAGCACAACGTT
CGTGTAACAGTGGAGT
CCTATTATCACCATAG
CGAGAAGGTCGAAAGC
CAAGGCCGTGTGGTTT
CGCTGGACAATCCGAT
GAAATGATCATTATCC
CAGTCCTTCCTTGGTC
TTGCCGTTCGCATGGC
CTCGAGGAGTCATCCA
GGCTCGAGTGCCTGTG
CAGCCGACAGTGGAGT
CACACTCTCTAACCGA
GTGGGTCCACCGCTAG
TCAACGAAGGTCATCT
ACGAGGAGTATCTGCA
CTCACACAGCCTATGT
CGTCTACGTAGAGTGC
...
AAAGCAAAGCGGATCA
CGAGCACAGGGTATCG
TGCGCAGCACAACGTT
TTTCCTCCAGATGGCA
CTCCTAGCAGCATACT
AGCTCCTGTTACGACT
TCAGGATTCCCTCTTT
ATTACTCGTTTGCATG
ATCATGGTCTTGGGTA
GATCAGTAGAACAATC
CAGCTAAGTTTGTGTG
CGTGTCTTCCCTGACT
TCTCTAAGTGGTCCGT
ACGTCAAGTCTTCTCG
CCTAGCTGTTTGTTGG
CTGAAACAGCGATTCT
CGCCAAGTCCACGTTC
GACTACAGTAGGGTAC
GTAGTCAGTAGAAAGG
AGGGTGACAGATGGGT
CCTATTAGTCGCTTCT
CTTCTCTAGCGCCTCA
CCGTACTCACAGACTT
AAACGGGCACTTCGAA
AACCGCGGTCAGTGGA
CTGGTCTTCCATGAAC
CGAGCACAGCCACGTC
CTCTAATGTAAACCTC
ACAGCTAAGGCAAAGA
CTCTACGGTGGTGTAG
TCACGAAGTGAGGGAG
CTGATCCGTCTGCCAG
CTACACCTCCGCGCAA
AAAGCAAGTCCGAGTC
ATTGGTGAGAGACGAA
ATGGGAGAGGCTCATT
CGATCGGCACACCGAC
AGCGTATTCTGTCTCG
CGCGTTTCAGCATACT
ACGCCGACAAGAGTCG
0
BC_21
0
0
0
5
0
0
4
6
0
0
0
0
0
4
11
0
0
4
1
4
0
0
0
0
0
11
9
6
3
5
7
0
0
0
0
0
8
0
0
...
4
0
7
0
0
0
4
1
1
0
0
0
0
0
4
0
0
0
1
1
2
0
8
0
0
8
0
7
0
0
0
0
0
0
0
0
0
1
0
0
1
BC_22
0
1
0
5
0
0
1
4
0
0
0
0
0
2
9
0
0
5
4
1
0
0
0
1
0
2
3
6
5
2
2
0
0
0
0
0
4
0
0
...
3
0
4
0
0
0
3
0
0
1
0
0
0
0
3
0
0
0
0
3
0
0
2
0
0
1
0
1
0
1
0
0
0
0
0
0
0
0
0
0
2
BC_23
0
0
0
4
0
0
1
0
0
0
0
0
0
2
1
0
0
2
1
2
0
0
0
0
0
6
2
1
4
0
0
0
0
0
0
0
3
0
0
...
2
0
3
0
0
1
1
0
0
0
0
0
0
0
3
0
0
1
0
4
1
1
1
1
1
3
0
1
0
0
0
0
0
0
0
0
0
0
0
0
3
BC_24
0
0
0
0
0
0
4
4
0
1
0
0
1
4
2
0
0
10
3
6
0
0
0
0
0
6
4
4
2
7
6
0
0
0
0
0
4
0
0
...
1
0
2
0
0
0
6
0
0
0
0
0
0
0
0
0
0
0
0
1
2
0
6
0
0
4
0
3
0
0
0
0
0
0
0
0
0
0
0
0
4
BC_25
0
0
0
6
0
0
9
3
0
0
0
0
0
3
5
0
0
5
4
7
1
0
0
0
0
8
7
8
1
3
3
0
0
0
1
0
3
0
1
...
4
0
2
1
0
0
8
0
0
0
0
0
0
0
6
0
0
0
0
2
6
0
12
0
0
6
0
8
0
0
0
0
0
1
0
0
0
0
1
0
5
BC_26
0
0
0
5
0
0
2
1
0
0
0
0
0
3
7
0
0
3
6
5
0
0
0
0
0
6
3
8
4
9
1
0
0
0
0
0
2
0
0
...
3
0
2
0
1
0
4
0
0
0
0
0
0
1
4
0
0
0
0
2
2
0
1
0
0
3
0
2
0
0
1
0
0
0
0
0
0
0
0
0
6
BC_27
0
0
0
5
0
0
2
2
0
0
1
0
0
0
1
0
0
1
5
5
0
0
0
0
0
5
4
7
3
3
4
0
0
0
0
0
3
0
0
...
4
0
3
0
0
0
5
0
0
0
0
0
0
0
3
0
0
0
1
4
1
0
2
0
0
2
1
4
0
0
0
0
0
0
0
0
0
0
0
0
7
BC_28
0
0
0
2
0
0
0
0
0
0
0
0
0
3
2
0
0
2
0
0
0
0
0
0
0
2
2
4
2
3
2
0
0
0
0
0
2
0
0
...
2
0
0
0
0
0
1
0
0
0
0
0
0
0
1
0
0
0
0
1
0
0
2
0
0
0
0
2
0
0
0
0
0
0
0
0
0
0
0
0
8
BC_29
0
0
0
4
0
0
6
4
1
0
0
1
0
2
7
0
0
4
2
4
0
0
0
0
0
5
5
8
6
6
2
0
0
0
0
0
1
0
0
...
8
0
3
0
0
0
2
0
0
0
0
0
0
0
4
0
0
0
0
5
4
0
7
0
0
3
0
3
0
0
0
1
1
0
0
0
0
0
0
0
9
BC_30
0
0
0
3
1
0
2
3
0
0
0
0
0
1
2
0
0
2
2
4
0
0
0
0
0
5
1
2
3
3
5
0
0
1
0
1
4
0
0
...
4
0
1
0
0
0
2
0
0
0
0
0
0
0
2
1
0
0
0
1
4
0
4
0
0
3
0
5
0
0
0
0
0
0
0
1
0
0
0
0
10
BC_31
0
1
0
2
0
0
3
3
0
0
0
0
0
3
5
1
0
3
2
3
0
0
0
0
0
9
3
3
3
4
3
0
0
0
0
0
6
0
0
...
2
0
5
0
0
0
2
0
0
0
0
0
0
0
2
0
0
0
0
2
0
0
5
0
0
3
0
1
0
0
0
0
0
0
0
0
0
0
0
0
11
BC_32
0
0
0
2
0
0
7
5
0
0
0
0
0
3
3
0
0
4
1
10
0
0
0
0
0
9
4
9
5
3
8
0
0
0
0
0
4
0
0
...
4
0
2
0
0
0
5
0
0
0
0
0
1
0
5
0
0
0
0
6
6
0
5
0
0
4
0
7
0
0
0
0
0
0
0
0
0
0
0
0
12
BC_33
1
0
0
1
0
0
2
1
0
0
0
0
0
3
2
0
0
1
2
1
0
1
0
0
0
3
6
3
1
3
2
0
0
0
0
0
1
0
0
...
4
0
1
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
2
3
0
2
0
0
4
0
6
0
0
0
0
0
0
0
0
0
0
0
0
13
BC_34
0
0
0
6
0
0
10
4
0
0
0
0
0
7
9
0
0
5
8
9
0
0
0
1
0
9
8
4
3
3
11
0
0
0
0
0
6
0
0
...
7
1
7
0
0
0
1
0
0
0
0
0
0
0
6
0
0
0
0
8
1
0
4
0
0
5
0
6
1
0
0
0
0
0
1
0
0
0
0
0
14
BC_35
0
0
0
5
0
0
3
3
0
0
0
0
0
4
5
0
0
2
2
5
0
0
1
0
0
5
3
4
5
8
1
0
0
0
0
0
0
0
0
...
0
0
2
0
0
0
4
0
0
0
0
0
0
0
5
0
0
0
0
2
2
0
1
0
0
7
0
3
0
0
0
0
0
0
0
0
0
0
0
0
15
BC_36
0
0
0
5
0
0
7
7
0
0
0
0
0
7
6
0
0
9
6
10
0
0
0
0
0
22
5
10
7
6
4
0
0
0
0
0
3
0
0
...
8
0
7
0
0
0
12
0
0
0
0
0
0
0
11
0
0
0
0
4
1
0
7
0
0
6
0
9
0
0
0
0
0
0
0
0
0
0
0
0
16
BC_37
0
0
0
6
0
0
9
3
0
0
0
0
0
8
9
0
0
3
4
7
0
0
0
0
0
6
7
5
4
2
2
0
0
0
0
0
3
0
0
...
2
0
2
0
0
1
71
0
0
0
0
0
0
0
1
0
0
0
0
2
7
0
5
0
0
7
0
3
0
0
0
0
0
0
0
0
1
0
0
0
17
BC_38
0
0
0
5
0
0
5
8
0
0
0
0
0
13
8
0
1
3
3
5
0
0
0
0
0
12
5
10
6
6
7
0
0
0
0
0
10
1
0
...
4
0
3
0
0
0
116
0
0
0
1
0
0
0
6
0
1
0
0
6
5
0
11
0
0
10
0
10
0
0
0
0
0
0
0
0
0
0
0
0
18
BC_39
0
0
0
4
0
0
0
21
0
0
0
0
0
0
2
0
0
2
1
8
0
0
0
0
0
3
0
1
0
1
0
0
0
0
0
0
0
0
0
...
4
0
1
0
0
0
2
0
0
0
0
0
0
0
4
0
0
0
0
0
2
0
2
0
0
2
0
52
0
0
0
0
0
0
0
0
0
0
0
0
19
BC_40
0
0
0
3
0
0
4
32
0
0
0
0
0
6
3
0
0
1
1
8
0
0
0
0
0
5
3
4
2
3
7
0
1
0
0
0
4
0
0
...
2
0
2
0
0
0
2
0
0
0
0
0
0
0
6
0
0
0
0
2
1
0
2
1
0
1
0
98
0
0
0
0
0
0
0
0
0
0
0
1
20 rows × 217582 columns
jelly2tags['CCATGTCAGTGTTTGC']
0 77
1 39
2 15
3 75
4 7114
5 5928
6 35
7 45
8 45
9 25
10 45
11 51
12 27
13 49
14 23
15 53
16 38
17 55
18 20
19 28
Name: CCATGTCAGTGTTTGC, dtype: int64
adata['CCATGTCAGTGTTTGC-2'].X
ArrayView([[ 7.832645 , 6.9506545, 6.153693 , 8.8333645, 13.878383 ,
13.557319 , 9.487391 , 7.2928925, 7.6783485, 6.5176826,
7.2424545, 8.551719 , 7.2883577, 9.619349 , 6.4227967,
7.5293713, 8.727089 , 9.155742 , 5.0387535, 7.7183394]],
dtype=float32)
ClickTag_counts_filtered.T['CCATGTCAGTGTTTGC-2']
BC_21 73
BC_22 40
BC_23 14
BC_24 74
BC_25 6992
BC_26 5863
BC_27 36
BC_28 45
BC_29 41
BC_30 25
BC_31 43
BC_32 50
BC_33 26
BC_34 48
BC_35 24
BC_36 50
BC_37 38
BC_38 56
BC_39 19
BC_40 27
Name: CCATGTCAGTGTTTGC-2, dtype: int64
BC_21
BC_22
BC_23
BC_24
BC_25
BC_26
BC_27
BC_28
BC_29
BC_30
BC_31
BC_32
BC_33
BC_34
BC_35
BC_36
BC_37
BC_38
BC_39
BC_40
CCATGTCAGTGTTTGC-2
73
40
14
74
6992
5863
36
45
41
25
43
50
26
48
24
50
38
56
19
27
AGGCCGTCAATCGAAA-2
35
23
18
36
52
25
30
18
33
29
47
26
4530
7795
46
58
25
43
26
31
CGCTGGACAAGACGTG-1
30
28
20
24
36
38
14
42
18
34
16
43
15
30
5000
6260
18
32
8
14
CTCGAGGTCACAATGC-1
35
19
53
135
41
23
20
14
34
35
51
36
4344
5855
29
54
33
47
15
35
CACACCTGTCTGATCA-1
72
37
14
58
5111
3898
31
51
31
23
33
25
137
199
27
32
33
32
18
19
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
TGACTAGTCAAACGGG-1
7
6
1
4
8
1
5
4
8
4
2
5
1
6
4
4
5
4
3
1
CGGACGTAGTAGCGGT-1
7
6
3
5
5
5
2
1
8
4
2
4
4
6
6
5
3
1
3
3
AACTCTTGTTGCCTCT-1
5
5
3
4
4
3
5
1
10
3
3
4
3
5
2
7
4
9
1
2
ACGAGGAGTAAGTTCC-1
10
5
3
5
6
2
5
1
3
3
3
5
1
4
3
7
7
4
4
2
GGGAATGAGCGTTGCC-2
4
5
2
10
7
6
3
2
3
2
2
6
2
5
3
7
4
6
1
3
50000 rows × 20 columns
ClickTag_counts_filtered.T.sum()
CCATGTCAGTGTTTGC-2 13584
AGGCCGTCAATCGAAA-2 12926
CGCTGGACAAGACGTG-1 11720
CTCGAGGTCACAATGC-1 10908
CACACCTGTCTGATCA-1 9881
...
TGACTAGTCAAACGGG-1 83
CGGACGTAGTAGCGGT-1 83
AACTCTTGTTGCCTCT-1 83
ACGAGGAGTAAGTTCC-1 83
GGGAATGAGCGTTGCC-2 83
Length: 50000, dtype: int64
Index(['AAACCTGAGAGGGCTT-1', 'AAACCTGAGAGGTTAT-1', 'AAACCTGAGCGAGAAA-1',
'AAACCTGAGCGTGTCC-1', 'AAACCTGAGGATTCGG-1', 'AAACCTGCAAAGTGCG-1',
'AAACCTGCAAGCTGGA-1', 'AAACCTGCAATCACAC-1', 'AAACCTGCATAACCTG-1',
'AAACCTGCATGCAACT-1',
...
'TTTGTCACACTTAACG-2', 'TTTGTCAGTACCTACA-2', 'TTTGTCAGTATGGTTC-2',
'TTTGTCAGTCATTAGC-2', 'TTTGTCAGTCTCCACT-2', 'TTTGTCAGTGGACGAT-2',
'TTTGTCATCATCTGTT-2', 'TTTGTCATCGCCTGAG-2', 'TTTGTCATCTAACGGT-2',
'TTTGTCATCTGAGTGT-2'],
dtype='object', name='index', length=13673)
counter=0
for x in old.obs_names[:]:
if x[-1]=='2':
print(counter)
break
counter+=1
Index(['TTTGTCAGTGTGAAAT-1', 'TTTGTCAGTTCCACAA-1', 'TTTGTCATCCGGGTGT-1',
'AAACCTGAGCAGCGTA-2', 'AAACCTGAGCTGAACG-2', 'AAACCTGCAAGCCATT-2',
'AAACCTGCAGGGAGAG-2', 'AAACCTGCATGAGCGA-2', 'AAACCTGGTCTGCCAG-2',
'AAACCTGTCAATCTCT-2'],
dtype='object', name='index')
kallistocounts=[]
cellrangercounts=[]
counter=0
for x in old.obs_names[:6853]:
kallistocounts+=[ClickTag_counts_filtered.T[x]]
cellrangercounts+=[jelly1tags[x[:-2]]]
counter+=1
for tag in list(range(10)):
plt.scatter(np.log10([x[tag] for x in kallistocounts]), np.log10([x[tag] for x in cellrangercounts]), alpha=0.3)
plt.show()
/usr/local/lib/python3.6/dist-packages/ipykernel_launcher.py:2: RuntimeWarning: divide by zero encountered in log10
